5.8GHz Microwave motion detection remote control-capable ceiling motion detector designed for corridors

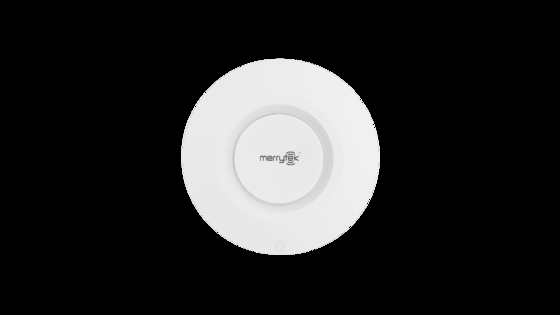

  • 5.8GHz Microwave motion detection remote control-capable ceiling motion detector designed for corridors

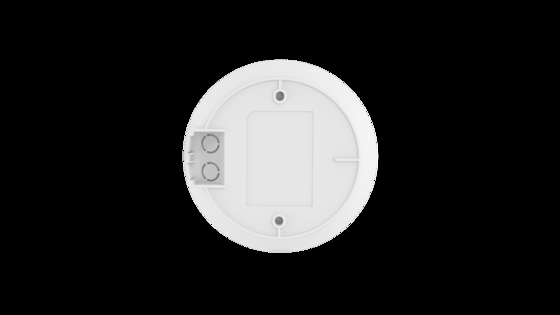

  • 5.8GHz Microwave motion detection remote control-capable ceiling motion detector designed for corridors

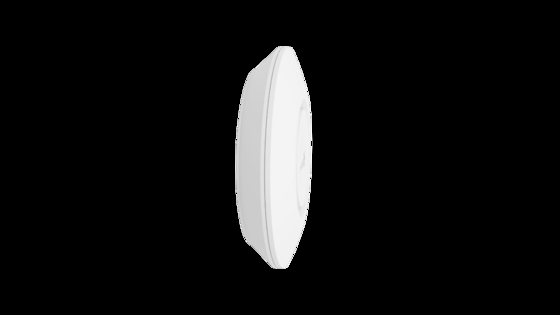

  • 5.8GHz Microwave motion detection remote control-capable ceiling motion detector designed for corridors

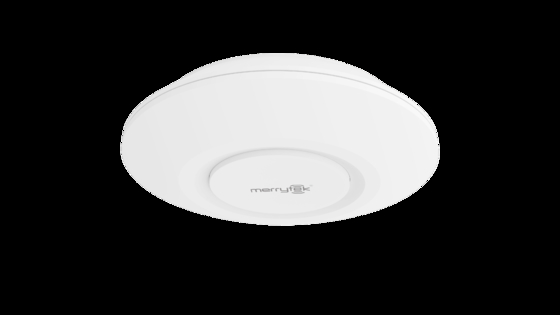

  • 5.8GHz Microwave motion detection remote control-capable ceiling motion detector designed for corridors

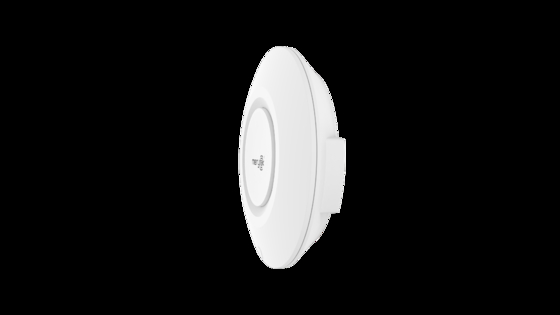

  • 5.8GHz Microwave motion detection remote control-capable ceiling motion detector designed for corridors
Place of Origin Shenzhen, China
ชื่อแบรนด์ Merrytek
ได้รับการรับรอง CE
Model Number MSA040S 99
Minimum Order Quantity 100PCS
ราคา สามารถต่อรองได้
Packaging Details White box+ White box tags+ Clapboard+ Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10000 pcs/month

ติดต่อฉันเพื่อตัวอย่างฟรีและคูปอง

วอทส์แอพพ์:0086 18588475571

วีชัต: 0086 18588475571

สกายเป้: sales10@aixton.com

หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
Working voltage 220-240Vac Working mode ON/OFF function
Mounting height 2.5-6.0m Life time 5 years warranty@Ta 230V full load
Working Power ≤1W Working frequency 5.8GHz
Detecting type Major motion detecting Mounting Ceiling mounted
ฝากข้อความ
รายละเอียดสินค้า

5.8GHz Microwave motion detection remote control-capable ceiling motion detector designed for corridors

1. Feature
1. Merrytek patented high-gain 5.8GHz microwave antenna technology
2. Detection area, hold time, and daylight threshold can be set by remote control
3. Max. detecting range 8-10m in diameter
4. 16A relay applied
5. Corridor, hallway, and toilet motion detection is highly recommended
2. Parameters


Input/OutputInput voltage100-240V AC 50/60Hz
Rated voltage220V AC
Working current20mA max
Input max surge testBetween L and N: 1KV
Power consumption≤0.5W @220V DC
Output signalON/OFF
Output max surge capacity50A (test twidth 200us @230Vac at 50% Ipeak, cold start at full load)
Load capacity800w resistive loading or 400w inductive loading
Sensor parameterMicrowave frequency5.8 GHz ±75 MHz
Radar transmit power2mW Max
Detection AreaDIP setting: 100%/90%/80%/70%/50%/40%/30%/20%
Hold TimeDIP setting: 5s/1Min/3Min/5Min/10Min/20Min/30Min
Daylight Sensor thresholdDIP setting: 5Lux/50Lux/150Lux/Disable
Radius detection range(based on 100% sensitivity)4-5m based on 3m mounting height
Remote controlAvailable
Mounting height2.5-6.0m
Detecting Angle120°
Application environmentInstallationSurface mounting
Working temperature0℃...+50℃
Storage temperature-40℃~+80℃
Certificate StandardCertificateCompliant to CE
Environmental requirementsCompliant to RoHS
IP ratingIP20
“N/A” means not available


3. Product Function
5.8GHz Microwave motion detection remote control-capable ceiling motion detector designed for corridors 0

4. Dimension
5.8GHz Microwave motion detection remote control-capable ceiling motion detector designed for corridors 1
5. Wiring
5.8GHz Microwave motion detection remote control-capable ceiling motion detector designed for corridors 2

Wiring layout suggestion:
1. LN terminal stands for AC input, L’N stands for AC output. Please wire correctly
2. One sensor’s max loading capacity is 800W resistive loading and 400W inductive loading for one single load.If you want to connect more load in one loop, we recommend adding an AC contactor in our output LN terminal to avoid momentary surge overload.

6. Detection
5.8GHz Microwave motion detection remote control-capable ceiling motion detector designed for corridors 3



7. Initialization
When powered on, the sensor load will stay on for 10s and then turn off. During this time, it will not detect any moving signal. After 10 seconds, you can use our remote or dip switch to adjust detection area, hold time, daylight sensor, etc., parameters.

8. Factory Default Setting:
Detection Area:50%, Hold time: 5S, Daylight sensor: Disable

9. DIP Switch Setting:
Detection Area

 123
ⅠONONON100%
Ⅱ-ONON90%
ⅢON-ON80%
Ⅳ--ON70%
VONON-50%
VI-ON-40%
VIION--30%
VIII---20%

Hold Time

 4567
ⅠONONONON5S
ⅡON-ONON1min
ⅢONON-ON3min
ⅣONONON-5min
ⅤONON--10min
Ⅵ--ONON20min
Ⅶ----30min

Daylight sensor


56
ⅠONON5Lux
ⅡON-50Lux
III-ON150Lux
Ⅳ--Disable

*Once the daylight sensor is set to Disable, our motion sensor will detect human movement regardless of the  environment's lux

10. Remote Control Setting
5.8GHz Microwave motion detection remote control-capable ceiling motion detector designed for corridors 4
